- Compatible with: HELIX 5 CHIRP G2/G3 GPS-equipped models only, HELIX 7 CHIRP G2/G3/G4 GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N/G4N All models, HELIX 8 CHIRP G3N/ G4N All models, HELIX 9 CHIRP G2N/G3N/G4N All models, HELIX 10 CHIRP G2N/G3N/G4N All models, HELIX 12 CHIRP G2N/G3N/G4N All models, ICE HELIX CHIRP G2/G3 and newer All models (in Open Water Mode) Side Imaging and Down Imaging units can support this transducer as a 2D sonar only transducer.
- Cable Length: 15 Feet
- Side Imaging and Down Imaging units can support the XP 9 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- 1-Year Limited Warranty

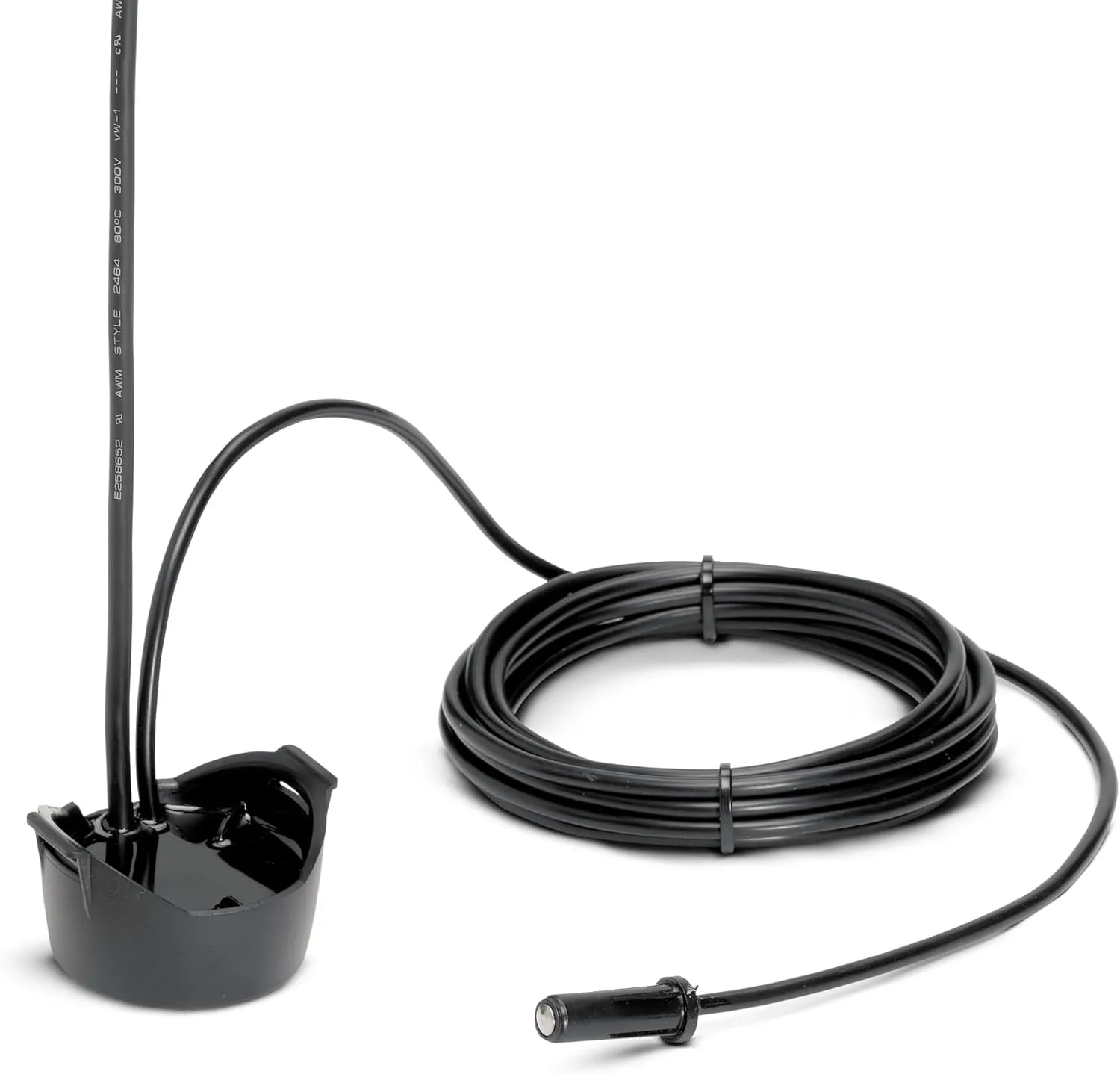

In Hull Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. For use in single layer fiberglass hull. Includes built-in temperature
